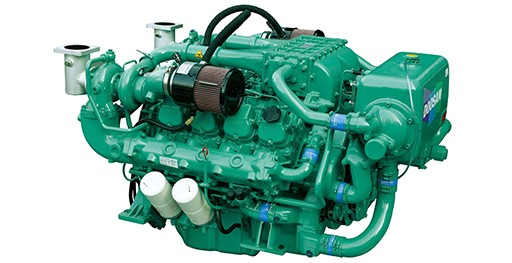

Doosan Marine Engine

DOOSAN is ranked as one of the world leading engine manufacturer for combustion engines. DOOSAN MARINE DIESEL ENGINES are durable and built to deliver maximum output. It is also eco-friendly.

DOOSAN MARINE DIESEL ENGINES are reliable and is suitable for workboat and fast boat applicable, Using the MAN engine based, DOOSAN MARINE DIESEL ENGINES are proven to be strong, robust and fuel efficient. Power Rating range from 118kW(160HP) to 883kW (1200HP).

Model	No. of cyl	Aspiration	Displacement (liter)	Bore x Stroke (mm)	Heavy Duty – kw (ps)/rpm	Medium Duty – kw (ps)/rpm	Light Duty – kw (ps)/rpm	Dimension(mm)	Dry Weight (kg)
L066TI	L 6	TI	5.8	102 x 118	132(180) / 2200			1042 x 800 x 915	535
L136	L 6	NA	8.1	111 x 139	118(160) / 2200			1188 x 764 x 926	743
L136T	L 6	TC	8.1	111 x 139	147(200) / 2200		177(240) / 2500	1188x766x926	748
L136Tl	L 5	TI	8.1	117 x 139	169(230) / 2200			1188 x 825 x 926	773
L086Tl	L 6	TI	8.1	111 x 139	210(285)/ 2100	232(315) / 2300	265(360) / 2500	1188×827 x962	790
MD196T	L 6	TC	11.1	123 x 155	206(280) / 2000			1235 x855 x 1073	975
MD196TI	L 6	TI	11.1	123 x 155	235(320) / 2000			1235 x 855 x 1073	1009
L126TI	L 6	TI	11.1	123 x 155	265(360) /2000	294(400) / 2100		1235 x 855 x 1073	1060
V158TI	V 8	TI	14.6	128 x 142	353(480) / 1800	397(540) / 2100	500(680) / 2300	1337 x 1223 x 1074	1350
V180TI	V 10	TI	18.1	128 x 142	441(600) / 1800	478(650) / 2700	603(820) / 2300	1495 x 1223 x 1169	1550
V222TI	V 12	TI	21.9	128 x 142	530(720) / 1800	588(800) / 2100	736(1000) / 2300	1653 x 1223 x 1199	1750
4V158TI	V 8	TI	14.6	128 x 142	390(530) / 1800	441(600) / 2100	603(820) / 2300	7102 x 1237 x 1095	1540
4V222TI	V 12	TI	21.9	128 x 142	588(800) / 1800	647(880) / 2100	883(1200) / 2300	1518 x 1245 x 1180	1920

To download the Brochure , please click .

To view Doosan Auxiliary engine for generator, pump or thruster application, please click “Doosan Auxiliary Engine” to view details.
