Henan Diesel Engine
Henan Diesel Engine Industry Co. Ltd (HND) is a member of China Shipbuilding Industry Corporation (CSIC) and the research and manufacturing base of high and medium-speed, high power diesel engines in China, specialized in manufacturing, sale, and service of diesel engines, gas engines, diesel generating sets, gas generating sets and emergency/fire pump sets.
It introduced the licensed technology from DEUTZ-MWM Company, Germany in 1985 and has produced series MWM234 diesel engines in V6, V8 and V12 and series MWM604BL6 diesel engines and TBD620V8, V12 and V16 diesel engines. It has also researched and developed series TBD236 and TBD620L6 diesel engines and gas engines with its own intellectual property.
In 2007, the company obtained the license of manufacturing L16/24 and L21/31 engines from MAN B&W Co. and began batch production in 2008. At present, the output of diesel engines covers 110 kW~2336 kW and that of diesel generating sets covers 80 kW~1700 kW.

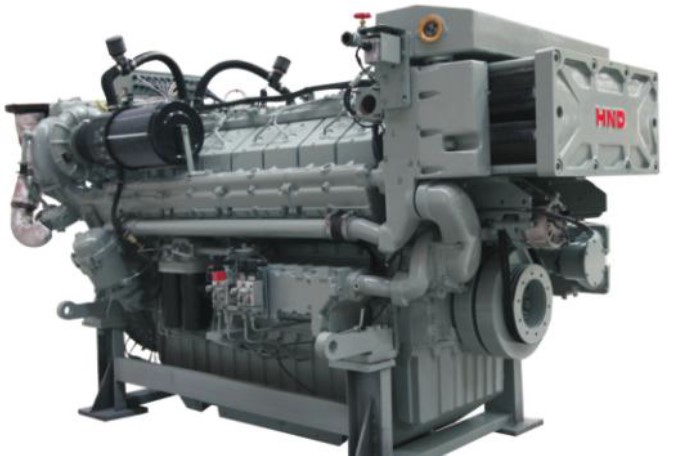

CHD316
CHD622V20

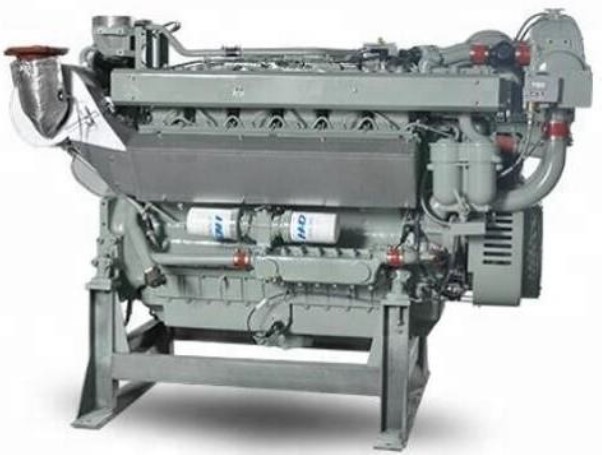

TBD234

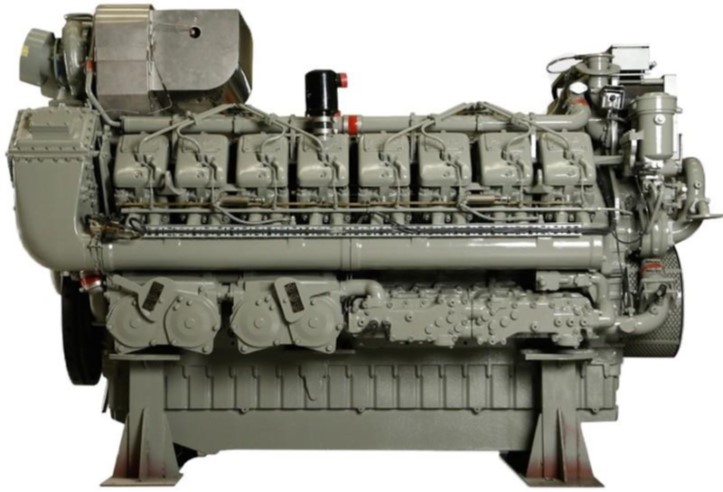

TBD620V16

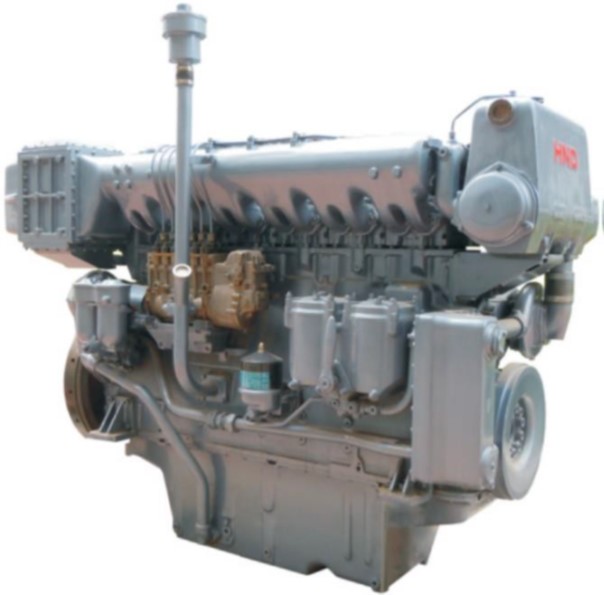

TBD640BL6
NHD Engine - Mechanical Fuel Pump System
|
Model |
Duty |
RPM |
kW (bhp) |
Fuel Consumption @ rated power (g/kW hr) |
Fuel Consumption @ rated power (L/hr) |
Dimension |
Weight |
|
TBD234 V6 |
C |
1500 |
186 (248) |
198 |
44 |
1502 x 960 x 1325 |
1250 |
|
TBD234 V8 |
C |
1500 |
249 (332) |
195 |
58 |
1648 x 960 x 1325 |
1490 |
|
TBD234 V12 |
C |
1500 |
373 (497) |
196 |
87 |
1943 x 1002 x 1321 |
2200 |
|
TBD234 V6 |
C |
1800 |
222 (296) |
201 |
53 |
1502 x 960 x 1325 |
1250 |
|
TBD234 V8 |
C |
1800 |
296 (395) |
198 |
70 |
1648 x 960 x 1325 |
1490 |
|
TBD234 V12 |
C |
1800 |
444 (592) |
198 |
105 |
1943 x 1002 x 1321 |
2200 |
|
TBD234 V8 |
H |
2100 |
323 (430) |
201 |
77 |
1648 x 960 x 1325 |
1490 |
|
TBD234 V12 |
H |
2100 |
485 (646) |
203 |
117 |
1943 x 1002 x 1321 |
2200 |
|
CHD316 V12 |
C |
1500 |
468 (624) |
194 |
109 |
2215 x 1318 x 1363 |
2420 |
|
CHD316 V16 |
C |
1500 |
624 (832) |
196 |
146 |
2585 x 1318 x 1393 |
3450 |
|
CHD316 V12 |
C |
1800 |
595 (793) |
194 |
138 |
2215 x 1318 x 1363 |
2420 |
|
CHD316 V16 |
C |
1800 |
794 (1058) |
196 |
186 |
2585 x 1318 x 1393 |
3450 |
|
CHD316 V12 |
H |
2100 |
702 (935) |
206 |
173 |
2215 x 1318 x 1363 |
2420 |
|
CHD316 V16 |
H |
2100 |
936 (1248) |
206 |
230 |
2585 x 1318 x 1393 |
3450 |
|
CHD316 V12 |
H |
2165 |
839 (1118) |
206 |
206 |
2215 x 1318 x 1363 |
2420 |
|
CHD316 V16 |
H |
2165 |
1107 (1475) |
206 |
272 |
2585 x 1318 x 1393 |
3450 |
|
TBD604BL |
C |
1200 |
372 (496) |
195 |
86 |
2242 x 1143 x 1953 |
2550 |
|
TBD604BL |
C |
1350 |
412 (549) |
197 |
97 |
2242 x 1143 x 1953 |
2550 |
|
TBD604BL |
C |
1500 |
450 (600) |
197 |
106 |
2242 x 1143 x 1953 |
2550 |
|
TBD604BL |
C |
1500 |
530 (706) |
192 |
121 |
2242 x 1143 x 1953 |
2550 |
|
TBD604BL |
C |
1650 |
586 (781) |
193 |
135 |
2242 x 1143 x 1953 |
2550 |
|
CHD620L6 |
C |
1500 |
650 (866) |
200 |
155 |
2497 x 1378 x 2039 |
3200 |
|
CHD620L6 |
H |
1800 |
690 (920) |
205 |
169 |
2497 x 1378 x 2039 |
3200 |
|
TBD620V8 |
C |
1500 |
829 (1105) |
198 |
195 |
2340 x 1450 x 2040 |
3700 |
|
TBD620V8 |
C |
1650 |
870 (1160) |
198 |
205 |
2340 x 1450 x 2040 |
3700 |
|
TBD620V8 |
C |
1800 |
920 (1253) |
200 |
220 |
2340 x 1450 x 2040 |
3700 |
|
TBD620V8 |
H |
1800 |
1016 (1354) |
200 |
242 |
2340 x 1450 x 2040 |
3700 |
|
TBD620V12 |
C |
1500 |
1240 (1652) |
197 |
291 |
2920 x 1450 x 2040 |
5200 |
|
TBD620V12 |
C |
1650 |
1304 (1738) |
197 |
306 |
2920 x 1450 x 2040 |
5200 |
|
TBD620V12 |
C |
1800 |
1380 (1840) |
200 |
329 |
2920 x 1450 x 2040 |
5200 |
|
TBD620V12 |
H |
1650 |
1440 (1919) |
197 |
338 |
2920 x 1450 x 2040 |
5200 |
|
TBD620V12 |
H |
1800 |
1524 (2031) |
200 |
363 |
2920 x 1450 x 2040 |
5200 |
|
TBD620V16 |
C |
1500 |
1658 (2210) |
198 |
391 |
3400 x 1450 x 2140 |
6300 |
|
TBD620V16 |
C |
1650 |
1740 (2319) |
198 |
410 |
3400 x 1450 x 2140 |
6300 |
|
TBD620V16 |
C |
1800 |
1840 (2452) |
200 |
438 |
3400 x 1450 x 2140 |
6300 |
|
TBD620V16 |
H |
1650 |
1920 (2559) |
198 |
453 |
3400 x 1450 x 2140 |
6300 |
|
TBD620V16 |
H |
1800 |
2032 (2708) |
200 |
484 |
3400 x 1450 x 2140 |
6300 |
|
CHD622V20 |
C |
1500 |
2500 (3332) |
198 |
590 |
3830 x 1530 x 2230 |
9700 |
|
CHD622V20 |
C |
1750 |
2600 (3465) |
200 |
619 |
3830 x 1530 x 2230 |
9700 |
|
CHD622V20 |
H |
1650 |
2750 (3665) |
200 |
655 |
3830 x 1530 x 2230 |
9700 |
|
CHD622V20 |
H |
1750 |
2900 (3865) |
200 |
691 |
3830 x 1530 x 2230 |
9700 |
HND Engine - Common-Rail Fuel System
|
Model |
Duty |
RPM |
kW (bhp) |
Fuel
|
Fuel
|
Dimension |
Weight |
|
CHD622V20 |
C |
1500 |
2600 (3465) |
198 |
613 |
3860 x 1530 x 2230 |
10000 |
|
CHD622V20 |
C |
1650 |
2720 (3625) |
200 |
648 |
3860 x 1530 x 2230 |
10000 |
|
CHD622V20 |
H |
1650 |
3000 (3998) |
200 |
715 |
3860 x 1530 x 2230 |
10000 |
|
CHD622V20 |
H |
1750 |
3270 (4358) |
200 |
779 |
3860 x 1530 x 2230 |
10000 |
C: Continuous duty
Unrestricted load operation, load factor up yo 80-100%, typical running hours more than 5000hrs/year
H: Heavy duty
Varied load operation, allow 8 hours full load every 12 hrs, mean engine load factor: 30 - 80%, typical running hours up to 5000 hrs / yr
